Setup Guide: 15cm Single Rod Kit

What's in the box

Your single rod kit includes all the necessary parts and tools to mount one tripod mountable accessory to your VESA plate.

Your single rod kit includes all the necessary parts and tools to mount one tripod mountable accessory to your VESA plate.

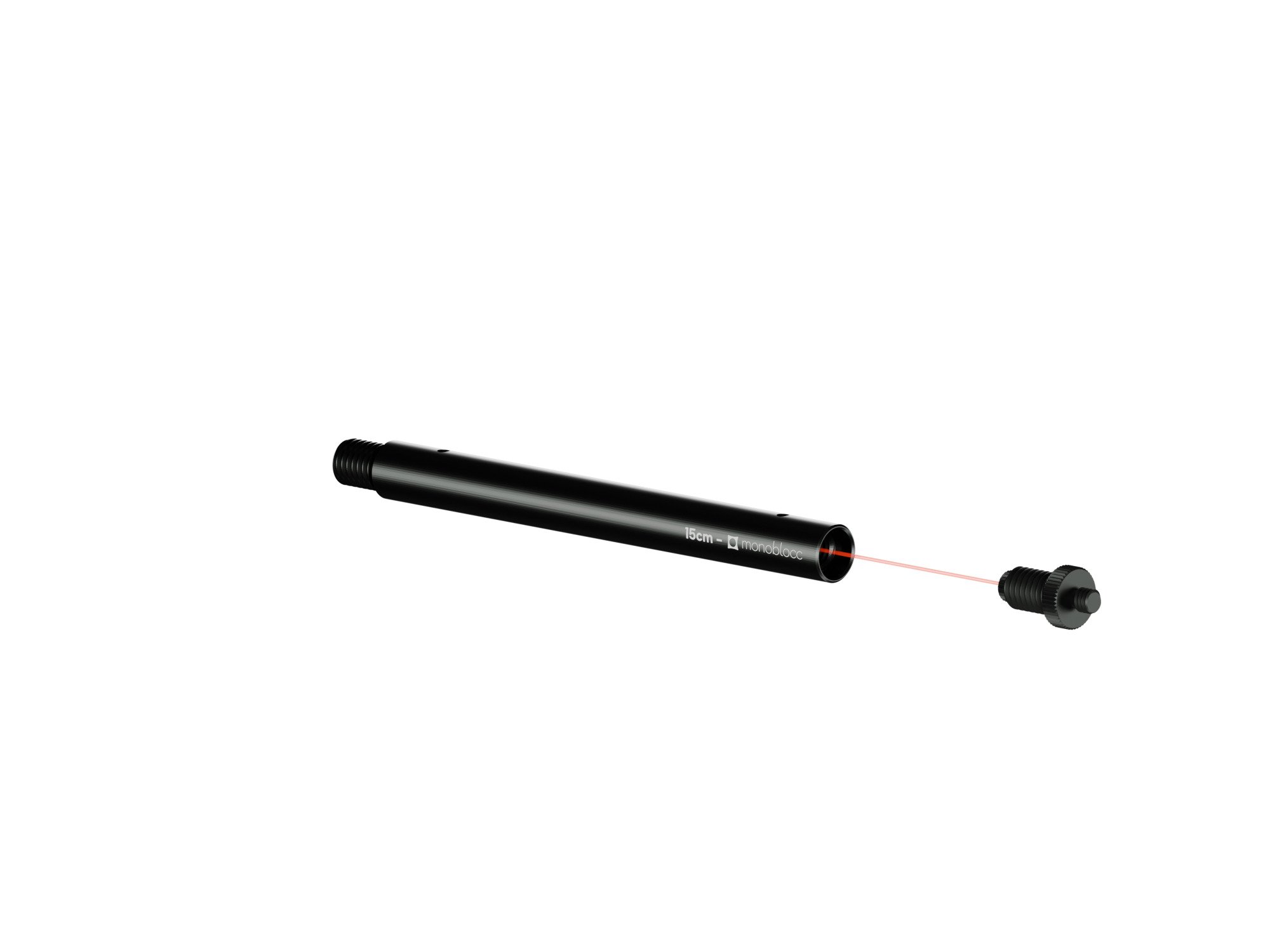

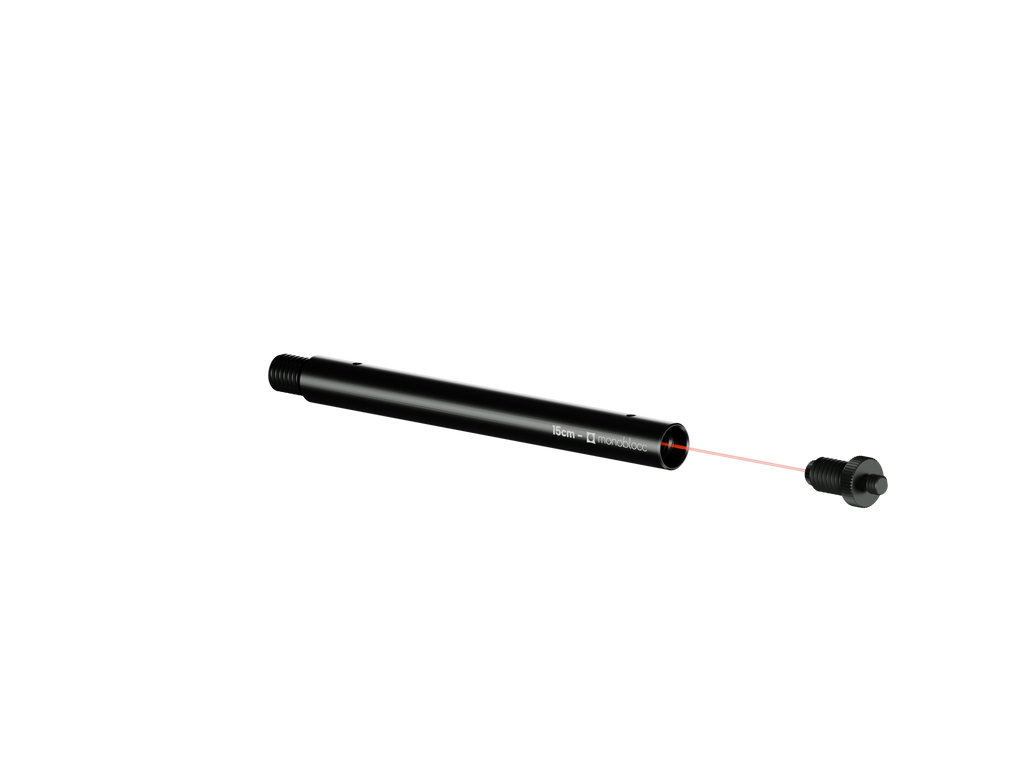

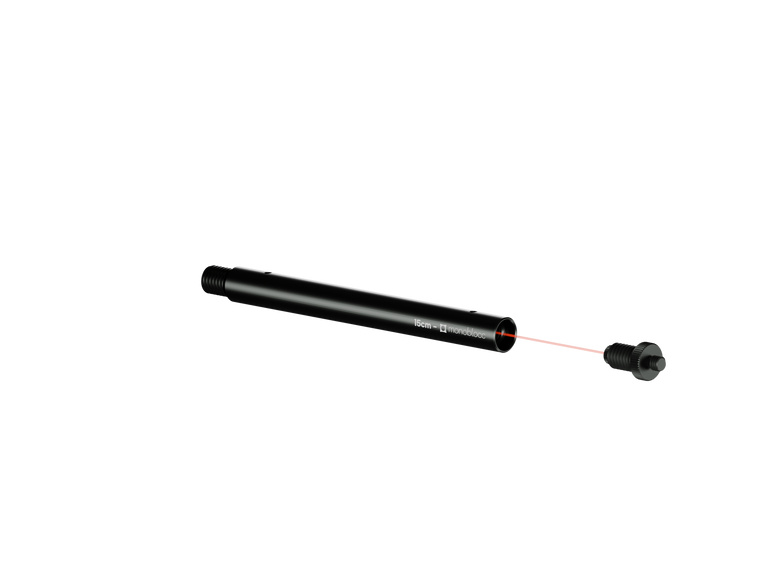

STEP 1: Attach the M12-1/4" Connector

Screw in your M12 to 1/4"-20 connector. It will be the attachment point for your tripod head.

Screw in your M12 to 1/4"-20 connector. It will be the attachment point for your tripod head.

STEP 2: Secure the connector with a grub screw

Screw in the supplied m4 grub screw. It will bite into the teeth of the M12 to 1/4"-20 connector to securly lock it in place.

Screw in the supplied m4 grub screw. It will bite into the teeth of the M12 to 1/4"-20 connector to securly lock it in place.

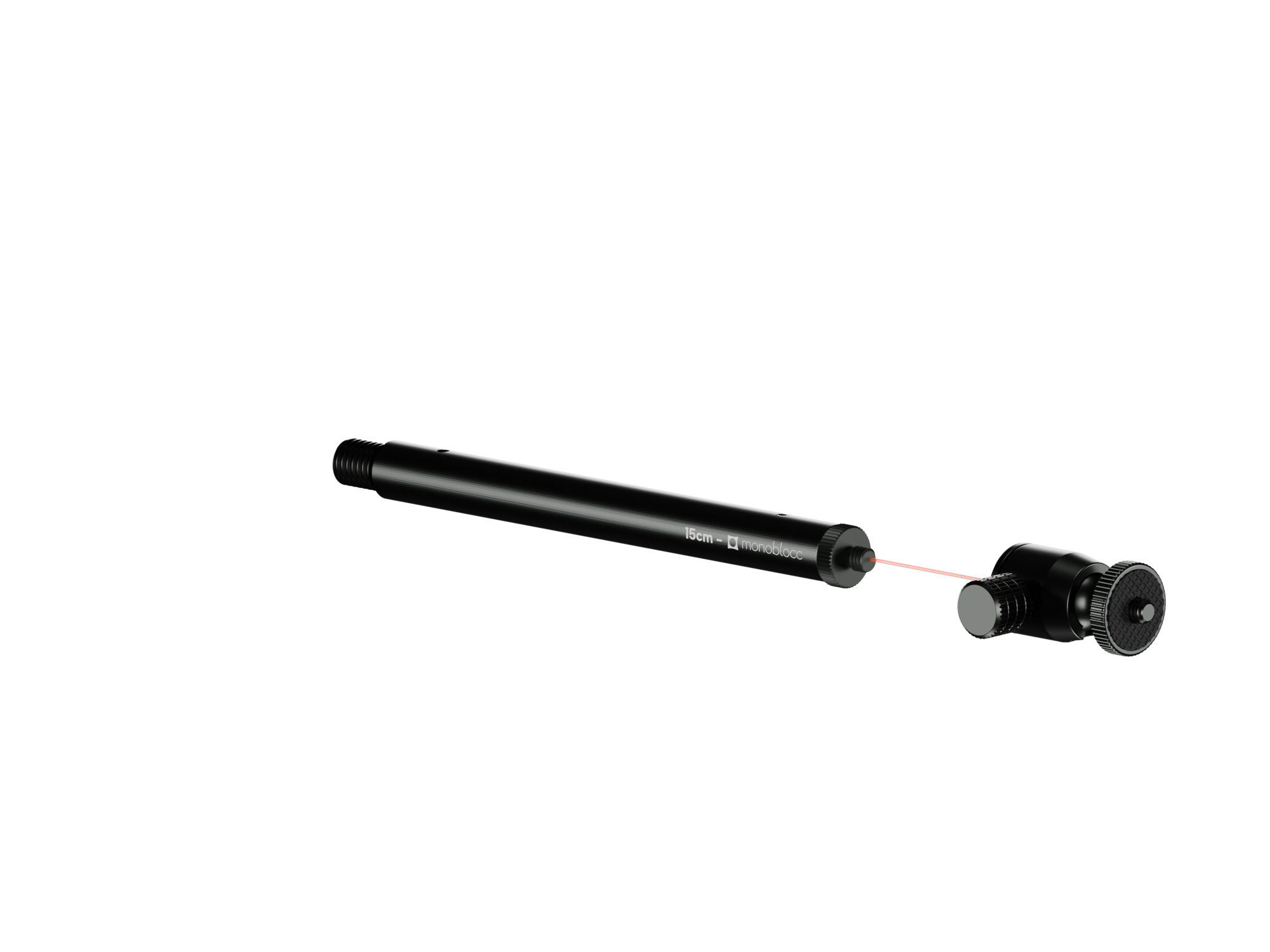

STEP 3: Attach your tripod head

Screw your tripod head onto the 1/4"-20 thread of the connector.

Screw your tripod head onto the 1/4"-20 thread of the connector.

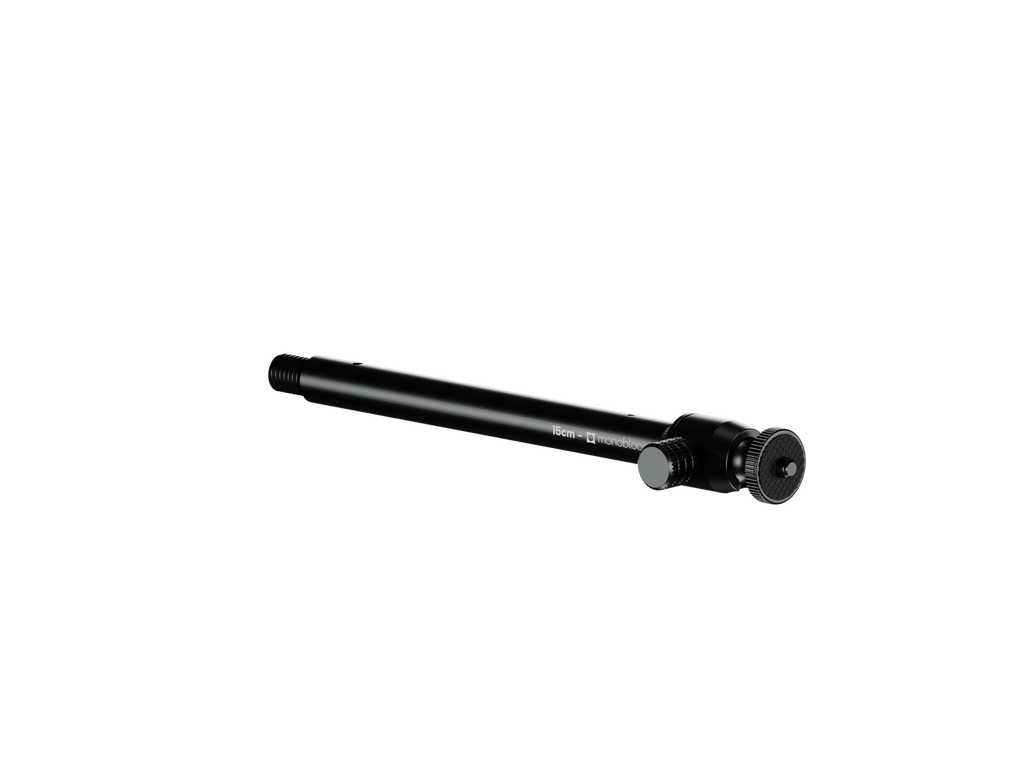

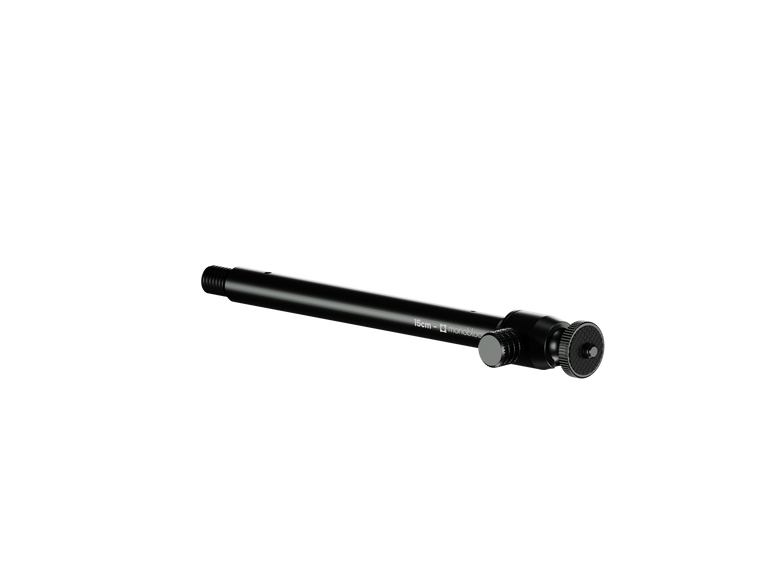

STEP 4: Completed single rod

Your completed single rod is now ready to be used at any of your VESA plates m12 threads.

Your completed single rod is now ready to be used at any of your VESA plates m12 threads.
